Canon XSi Features, Settings and Configuration
The Canon XSi offers many menu options which we will attempt to explain.
Auto focus points:

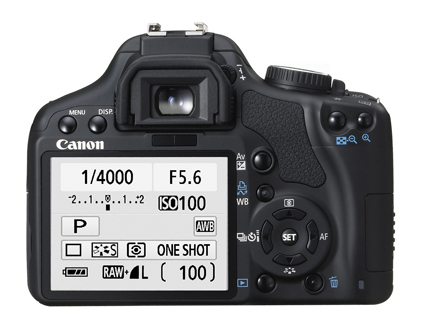

The Canon XSi has 9 auto focus points visible in the view finder. One can use the center point for all focus, allow the camera to select and have all points enabled, or select an individual focus point to compose a photo however one wants. These points can be selected by looking through the viewfinder, pressing the AF Point button on the upper right of the back of the body, also indicated by the Magnification + button. You then turn the selection dial located next to the shutter button to choose the auto focus point desired.
The center focus point is more accurate than the other focus points, if you are shooting sports you may want to stick with the center auto focus point. The center auto focus point also becomes more sensitive and accurate when a lens with a 2.8 aperture is used.
Raw vs Jpg:
Canon XSi allows one to shoot in JPG or Raw file formats. A JPG is a compressed image which has been edited by the camera, its colors are changed and it attempts to produce a photo ready for distribution, printing and other use directly out of the camera. These images can be edited in Photoshop, but they are not really ideal – and your results will suffer greatly versus the flexibility of a RAW file.
For more advanced users, the ability to control their images in post processing using applications like Canon Digital Photo Professional or Adobe Photoshop requires the use of the RAW file format. Raw file format on the XSi are approximately 13-15 mb images; this will significantly reduce the photo quantity capacity of your memory card. In turn the images retain all of their data when the photo was taken, without any processing by the camera. A RAW file is the original sensor data captured, and while you may have chosen a white balance and picture style, these do not embed themselves within the data of your image. Instead the RAW file uses your camera white balance and picture style settings as a type of marker, which can be interpreted by the computer, but easily changed using the previously mentioned software packages. You can then take the photo and using your computer software, change the white balance settings that were used, change exposure amounts, and other fine adjustments to perfect your photo in ways that a camera could never automate.
So should you use raw or JPG? That depends on how much time you have after shooting your photos. If you are taking 2,000 photos and will not have time to edit them all, you can shoot JPG and hope your settings will provide the images you want. If you are doing a smaller shoot, I’d go for RAW. That way you don’t need to worry about white balance settings, sharpness, or any of the picture style formats – they can be changed with a click in post processing.
Raw files are large and will take up a large amount of space on your computer. So be sure to have plenty of storage.
Another note on raw files with the XSi: they use a new standard called G9 CR2 raw files, this requires one to install both Canon Raw – available at canoneos.com and additionally Photoshop users will need to download Adobe Camera Raw plug in from adobe.com. Photoshop CS3 will not be able to open XSI raw files without updating the Camera Raw plug-in to version 4.5 or greater.
Raw files will require some sharpening, the camera normally sharpens photos in JPG, and so clarity will improve with improving the sharpening of a raw file. Other techniques will be detailed in the post processing section of this site.
AI Servo / AI Auto Focus / One Shot
On the quick control pad on the back of your XSi resides the AF arrow – the Right directional key. A quick press of this button allows a user to rapidly select One Shot / AI Auto Focus / AI Servo. Choose the mode you want and press Set.
1. One Shot: Canon’s default focus mode, the camera will not take a photo until the camera locks onto its subject matter. Only once the red light in the view finder lights, the photo can be taken. Appropriate for non-moving subject matter, portraits, landscapes and other NON-moving subjects.
2. AI Servo: The XSi constantly refocuses attempting to calculate the moving subjects next movement and based on that prediction focus the lens on the subject. This mode should be used when shooting sports, moving objects, or any type of image where the subject matter is constantly changing location. This mode can be combined with continuous shooting to capture 3.5 frames per second while following a subject. If the auto focus is able to perform adequately, you will get 3.5 frames per second in focus while your subject matter is moving.
3. AI Auto focus: Mode where the XSi determines whether One Shot or AI Servo should be used. In general this is not a good mode to be in, and I avoid it at all times. It’s quite quick and easy to switch between one shot and AI Servo – do that when switching is necessary.
Continuous / One Shot / Timer / Continuous Timer
Continuous / One Shot / Timer / Continuous Timer
Continuous: Continuous mode allows you to hold the shutter release button down and snap away at the fastest FPS available to the camera. This will result in many photos being taken; it is most helpful for action shots where you are trying to capture as many frames of the action as possible. The draw backs are that it will keep firing, and if you are using a flash – the flash may not be able to recycle its power cycle and keep up with your photos. You can also end up with more photos then you intended, if you hold it for too long.
One Shot: Press and hold the shutter and you get one photo, you have to release the shutter button and press again to get another photo.
Timer: Places the camera on a 2 second delay, press the shutter button – wait and then the photo is taken. Useful when using a tripod, reduces camera vibrations when pressing the shutter.
Continuous Timer: Places the camera on a 2 second delay, press the shutter button – wait and then 10 photos are taken. Useful when using a tripod, reduces camera vibrations when pressing the shutter.
ISO noise reduction
Canon XSI fps slow?
At higher ISO speeds the cameras image degrades and digital noise enters your photo. The camera attempts to reduce this noise by digitally removing it in camera. When this feature is enabled within the custom function menu #4 the camera is no longer able to shoot frames at its maximum speed of 3.5 frames per second. If you are using your camera, have a high shutter speed and are finding that your camera is only taking two photos before lagging - you may need to turn this feature off. When turned off, your camera will be able to shoot at 3.5 FPS, allowing you to shoot sports and high speed actions. When shooting night shots or extended exposures, enable the function again but do not forget to turn it off when not needed, it might cause you to lose a critical shot.
Highlight Tone Priority
Highlight tone priority customization mode is a new feature to the Rebel Series. Essentially it is a mode where Canon limits you to an ISO range of 200 – 1600. When HTP mode is enabled, the ISO setting looks different with a large 2 and small 0’s. HTP mode takes a photo at a higher ISO but processes using a lower ISO settings configuration. So what’s the point? HTP is an attempt by Canon to help prevent blow out or loss of detail to shadows. If something is overly white, it helps to bring it down so detail isn’t lost; if something is overly dark it helps lighten the area to bring in more detail. This feature does instill a larger amount of digital noise especially in dark areas. I personally do not use this feature; you can instead under expose the image and fix it in post processing. HTP is an artificial way to expand the dynamic range of the camera; the following photos demonstrate the HTP difference. Whether the benefit is worth the added noise is up to each individual. These two photos were taken within 5 seconds of one another. The first is shot at ISO 100 using the Canon EF 17-40 @ F 4.0 in aperture priority mode the shutter was 1/90th of a second. This is without HTP enabled.
HTP Enabled:
HTP Enabled 1/125th, F4 ISO 200 aperture priority, evaluative meteringHTP enabled 200% crop, demonstrates increased noise minute detail increase
HTP enabled 200% crop showing additional noise, more "shadow" detail
HTP disabled crop 200% showing less noise
Light optimizer
sRGB v aRGB
Your camera allows you to shoot in sRGB or Adobe RGB modes. Adobe RGB mode has a greater depth of color range, and is considered a professional color mode. Adobe RGB monitors are quite expensive, and most windows systems are not calibrated for adobe RGB. Adobe RGB is used for printing professional prints and is not compatible with standard applications such as internet explorer etc.
If you are sharing your XSi photos via the web or printing them via your own printer or a photo service – make sure you are shooting in sRGB mode or at the very least converting them to sRGB in adobe Photoshop prior to posting them to the web. Even if they look great on your screen, your images will look flat, muddy, and unattractive when posted on the web. Any edits you do will be muted, as aRGB is not appropriate for online use.
White Balance: A main reason to shoot using the RAW file format is the ability to change the white balance during post processing of your images. If you are shooting in JPG you will need select the proper white balance based on the type of lighting you are exposing the sensor too, this may require more complicated steps such as using a custom white balance.
Picture Styles: Using the down arrow on the rear of your XSi you are able to quickly access the Picture style menu. This menu allows you to colors schemes, sharpness, and saturation settings that Canon has made available to the user. These selections embed themselves into JPG files and flag themselves on RAW files. This means that JPG files will be permanently tuned to the setting selected, RAW files will represent the choice shown, but can be easily changed in post processing using either DPP or Adobe Camera Raw (see Adobe Camera Raw tutorial)
Standard: basic sharpening and color saturation
Portrait: warmer tones, less sharpening
Landscape: more saturation, more vivid blues and greens, more sharpening
Custom settings: allow you to control the amount of sharpening, contrast, saturation of your JPG files.
Custom Functions: The XSi offers custom functions which are more advanced settings available to the user. These more advanced settings do not necessarily equate to better images, but they can certainly lead to the need for more complex and technical understanding and use of your camera. Custom functions allow things such as focus and exposure to be separated from the shutter button to independent buttons, allow the enabling or disabling of highlight tone priority, auto lighting optimization, flash sync speed, high ISO noise reduction, long exposure noise reduction, mirror lock, and other functions. We will touch on these with the more advanced sections of this tutorial.
